Double Column Milling CNC



Titan 1400

Ariobots Mechatronics Group, a CNC (Computer Numerically Controlled) machine tool manufacturer owning brand “TITAN”, provides heavy cutting and high speed 3-axis milling CNC, from metal cutting to composite material machining which can be apply in vehicles manufacture, power generating, aerial components and so on. Ariobots history starts with its founding in 2005 as a student machine project. The first machine were manufactured from 2006. The company played an important part in the development on the manufacturing industry and is the industry’s only single-source provider, manufacturing the CNC machine, drive, motor, encoder, spindle and CNC control. We are proud to be the industry’s only single-source provider. Our global sales and service operations with local distributors around the world enable us to provide our customers with all the support they need – whenever, wherever. A wide network of partners helps us to keep defining the cutting-edge, from sophisticated automation to full-on smart factory management.



Features

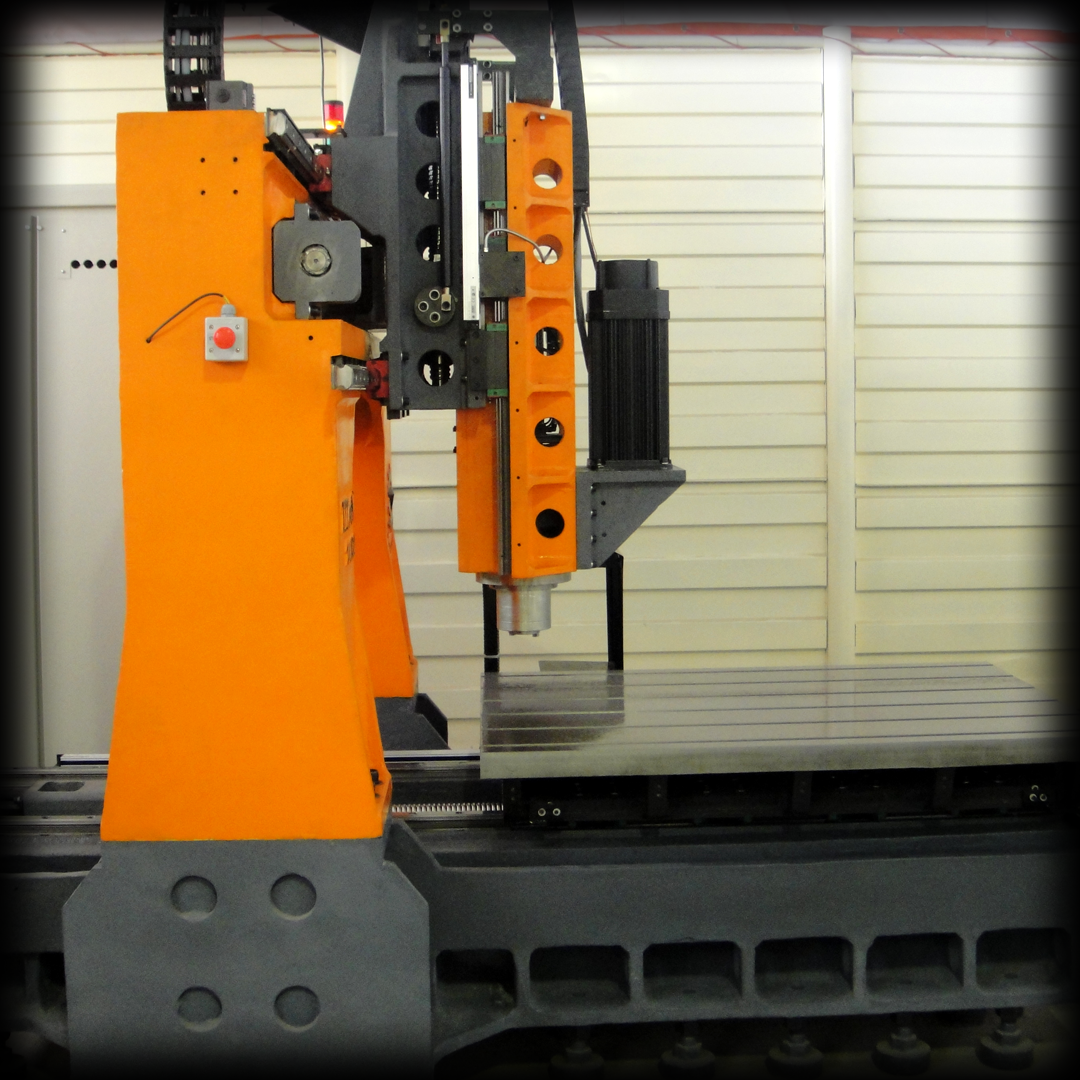

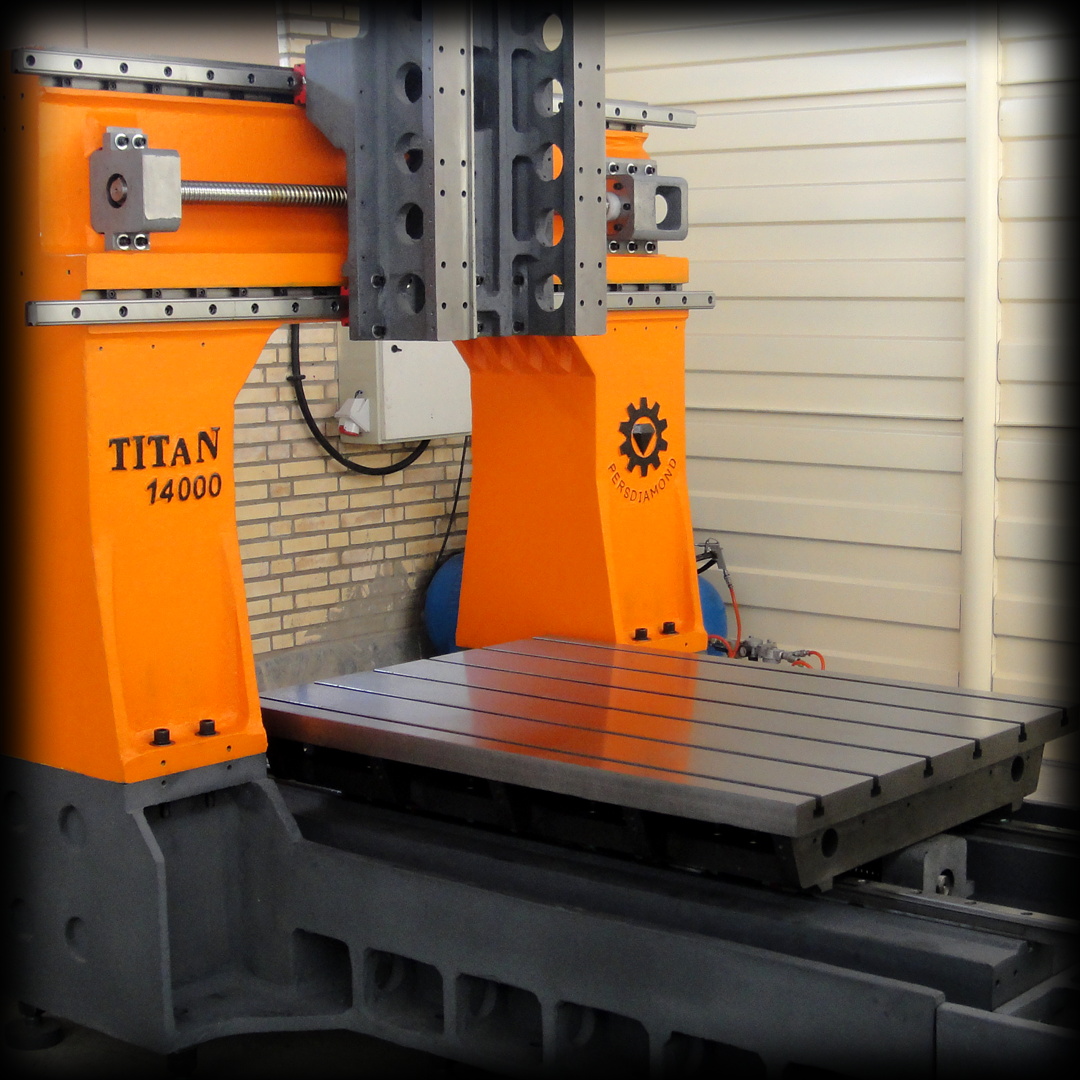

The new 3-axis vertical milling machine

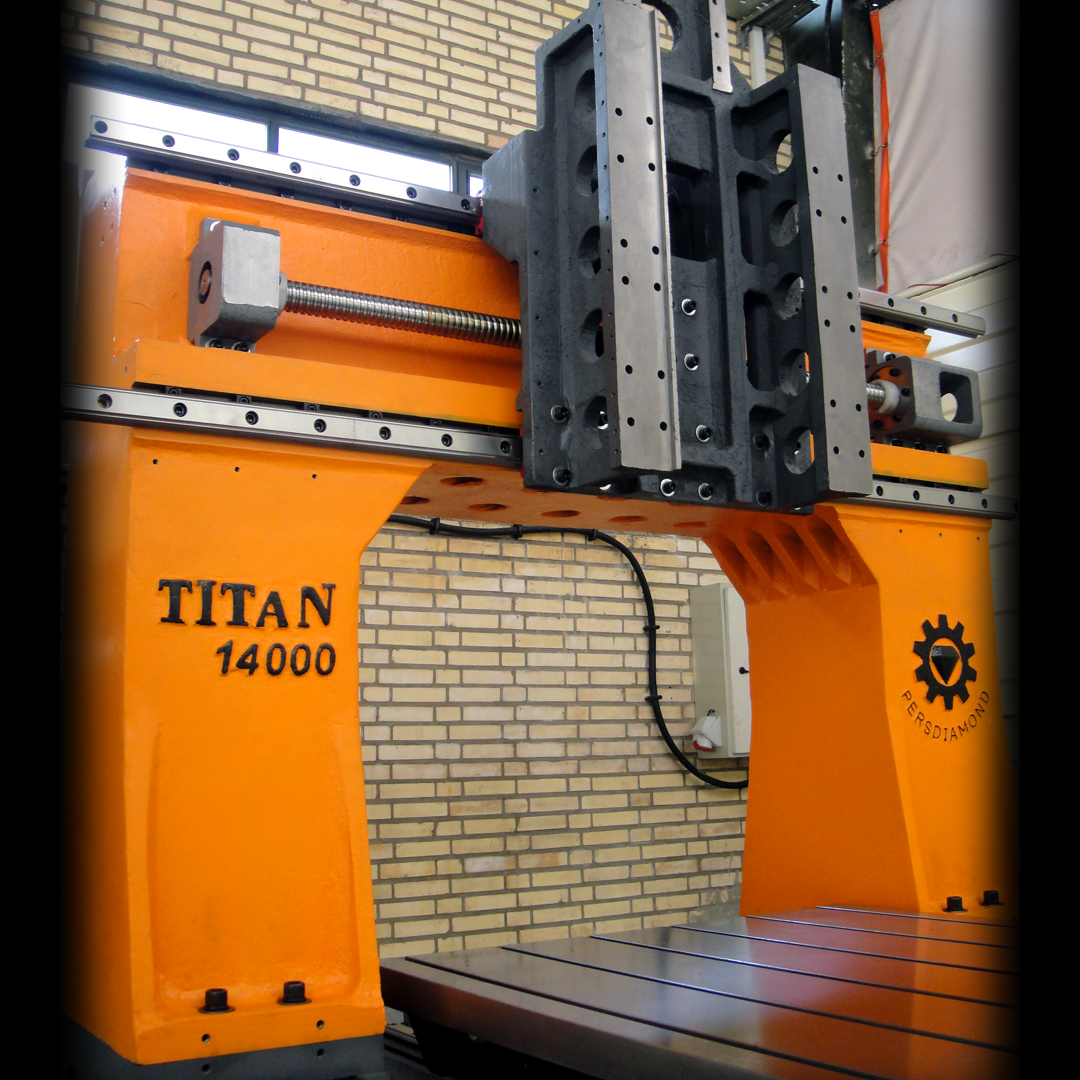

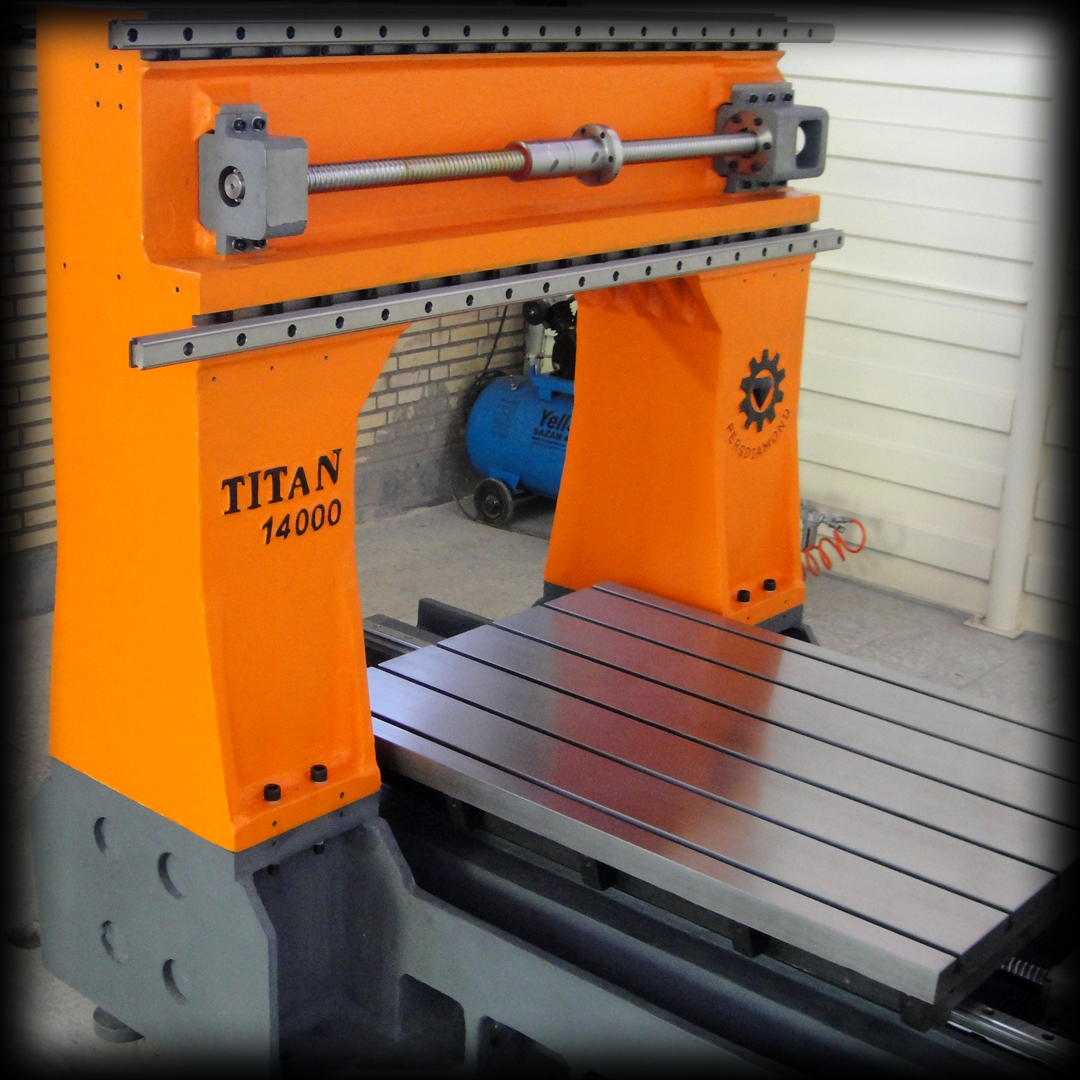

Titan is a newly developed 3-axis vertical milling machine for a new customer segment! The machine covers all industries and applications for easy milling parts up to 2.400 kg and secures highest accuracy and precision. The design is based on a monolithic bed, leading to maximum static and dynamic rigidity as well as perfect damping properties. Titan can be customized by cutomer order some Titan feature can be customized by customer needs, such as Z-axis travel, Spindle distance from nose to table surface, CNC Controller, Servo motors power and linear guideways

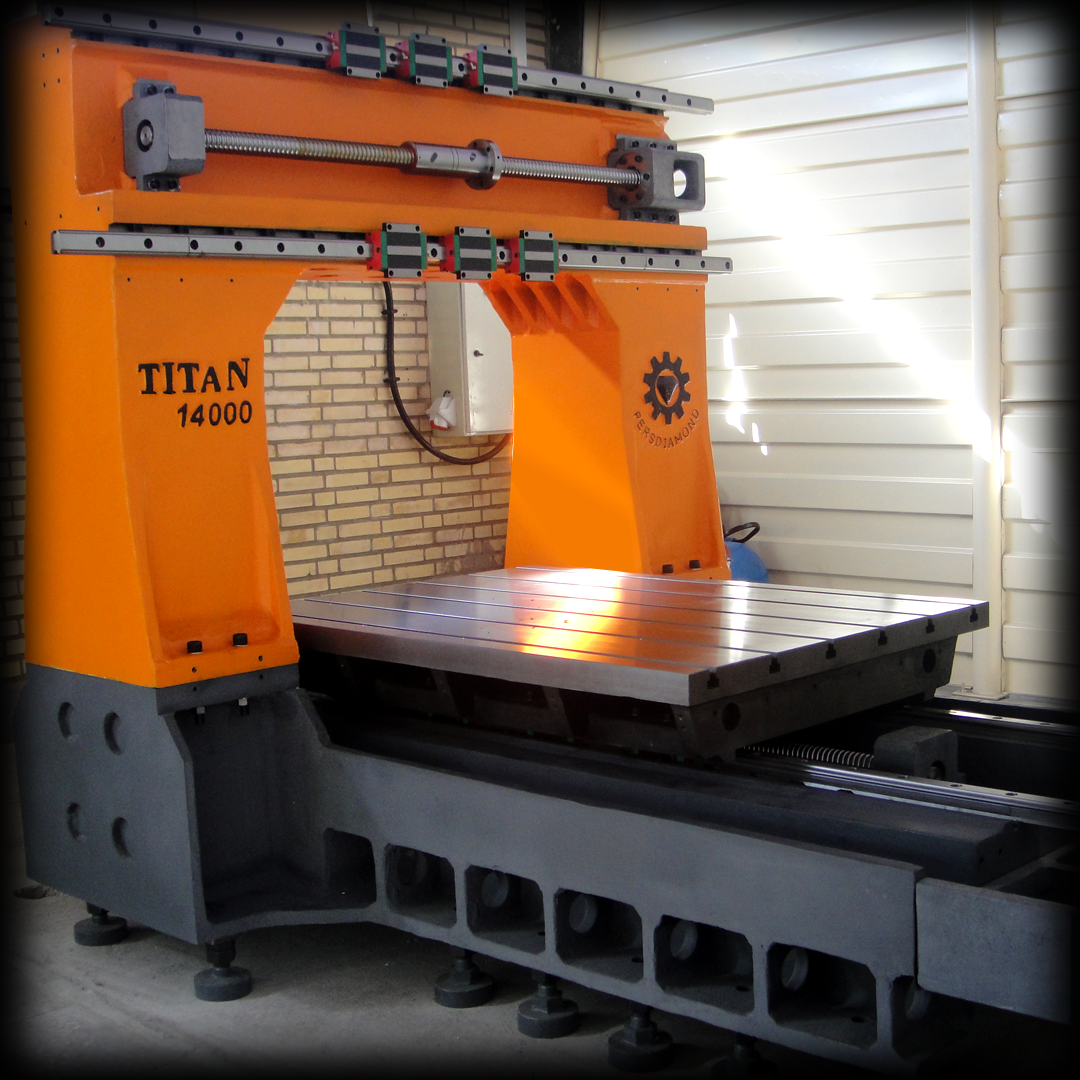

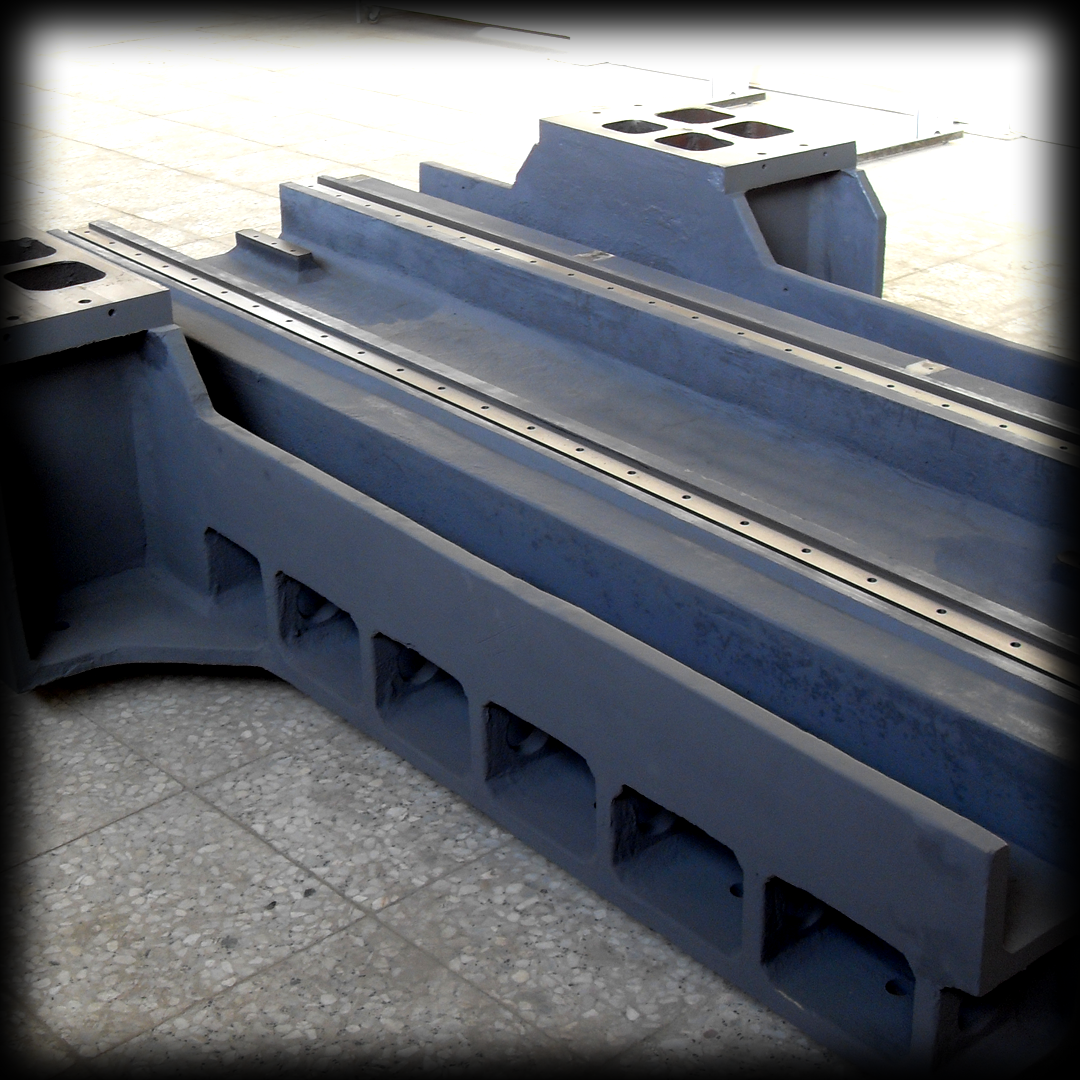

  • Massive and thermally stable monolithic machine bed with weight of 3.400 kg!
  • Large distance between guideways:
  • Perfect machining performance and high surface quality thanks to superior stiffness!
  • Large heat capacity of components guarantee thermal stability!
  • SINUMERIK 808D ADVANCED
  • Rapid feedrates of 36 m/min
  • 8000 rpm spindle with rigid tapping
  • high torque servo motors with absolute encoder
  • Z axis servo motor with break
  • Large work table for 4th axis applications
  • 3 axis linear guides
  • Very stronge ballscrew 50⌀, Pith 12mm
  • Superior casting design
  • Maximum spindle heavy duty spindle
  • Direct coupled servo-motors
  • Front mounted Y-axis motor

Specification

Item Unit TITAN 1400

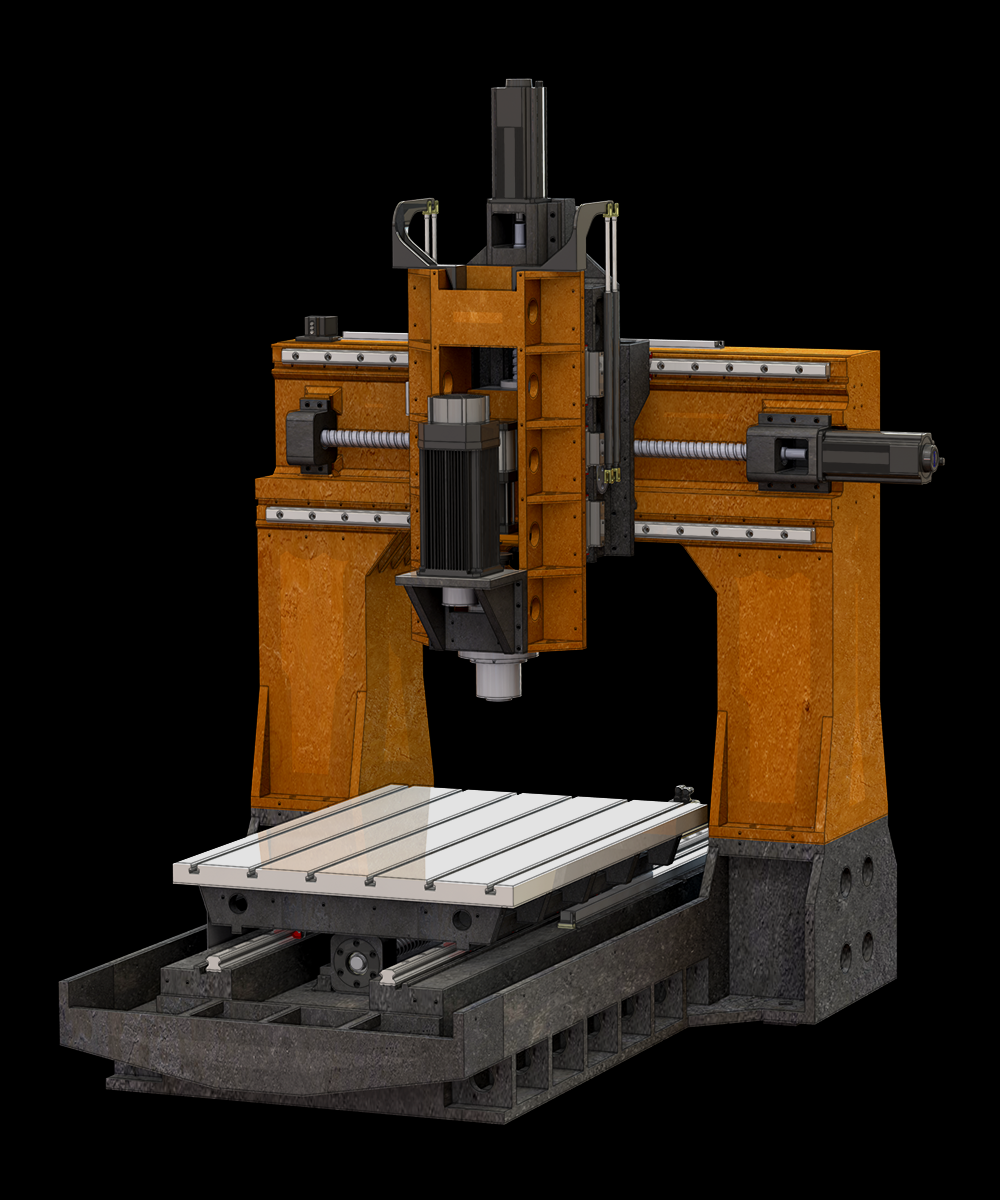

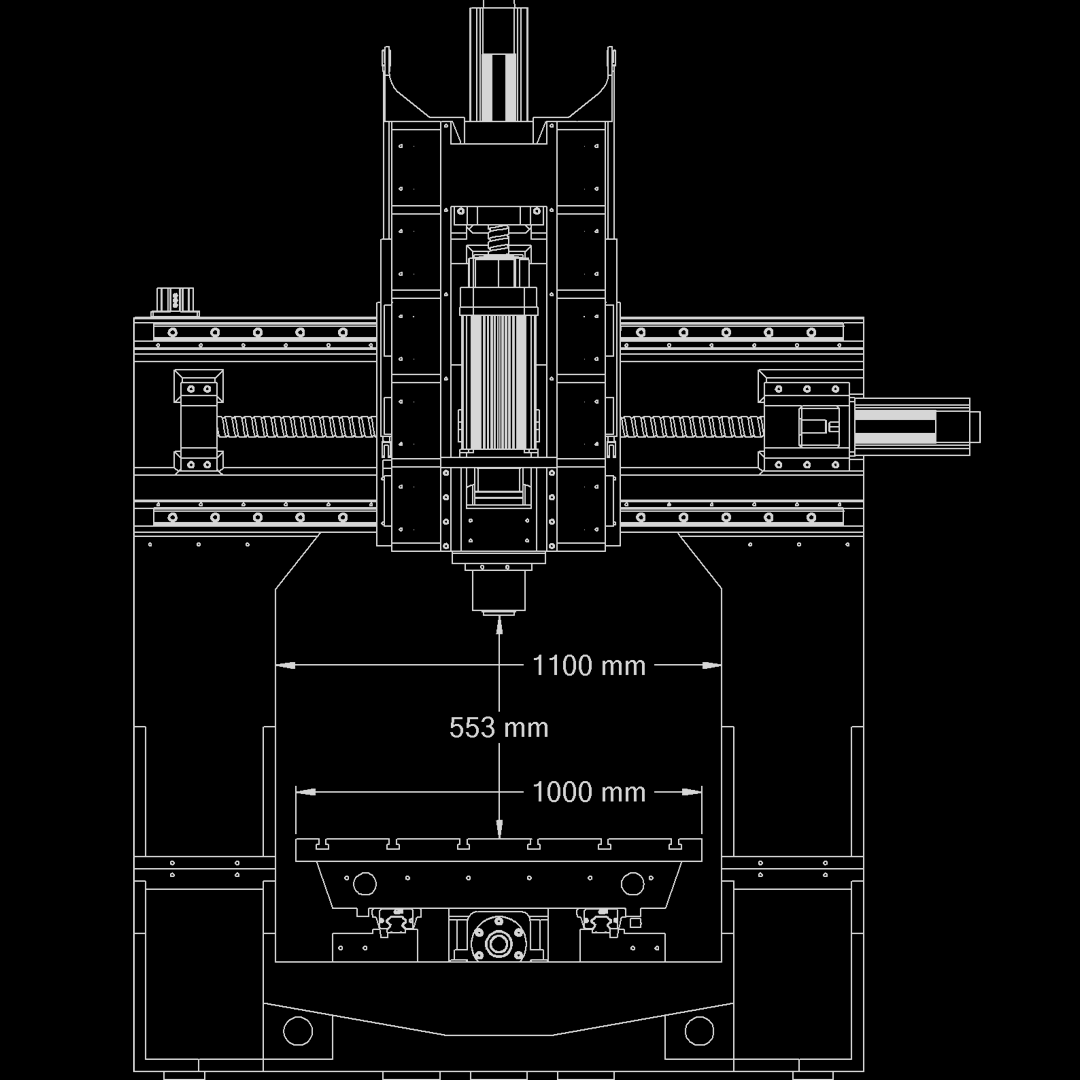

Travel X axis travel mm 1400
Y axis travel mm 1000
Z axis travel mm 360

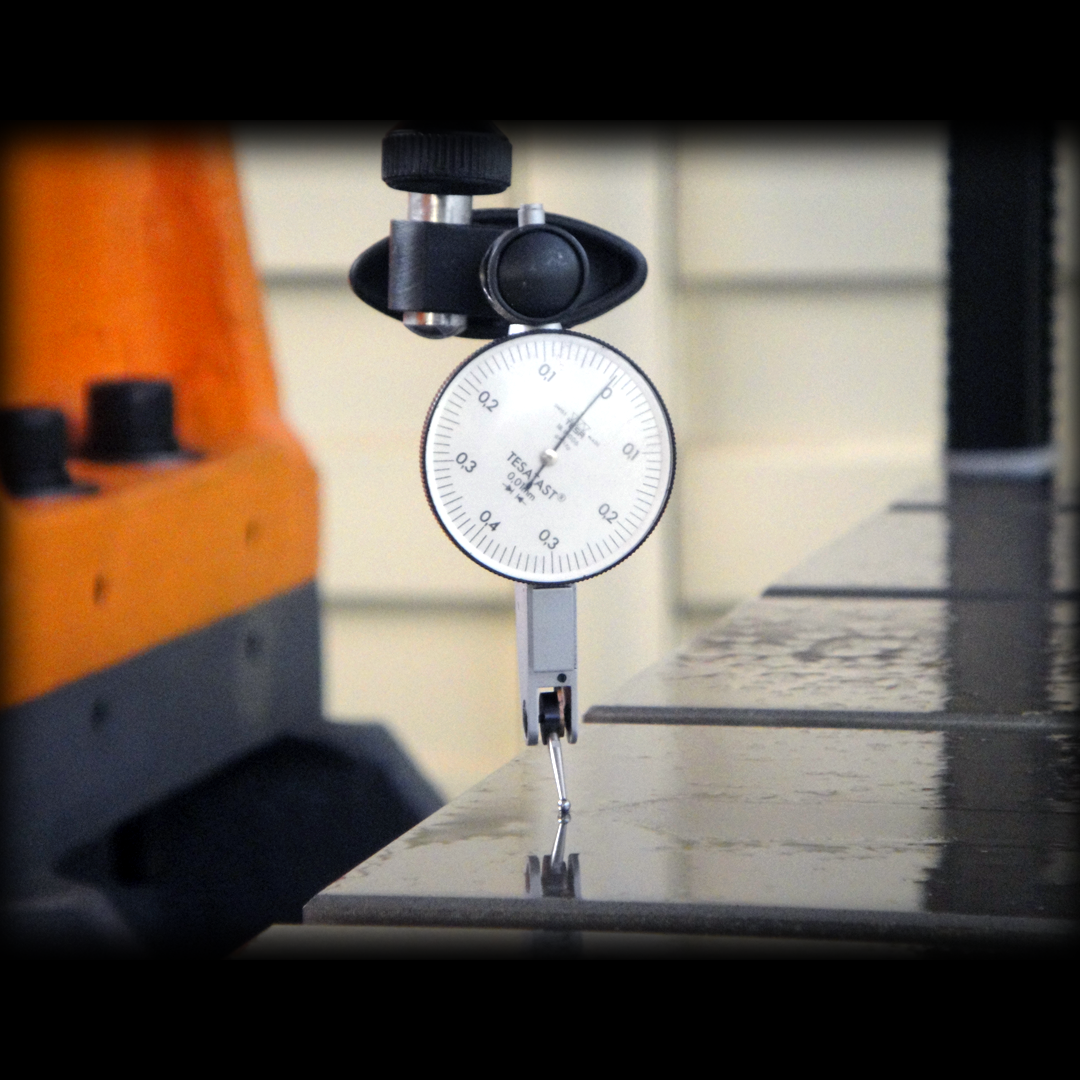

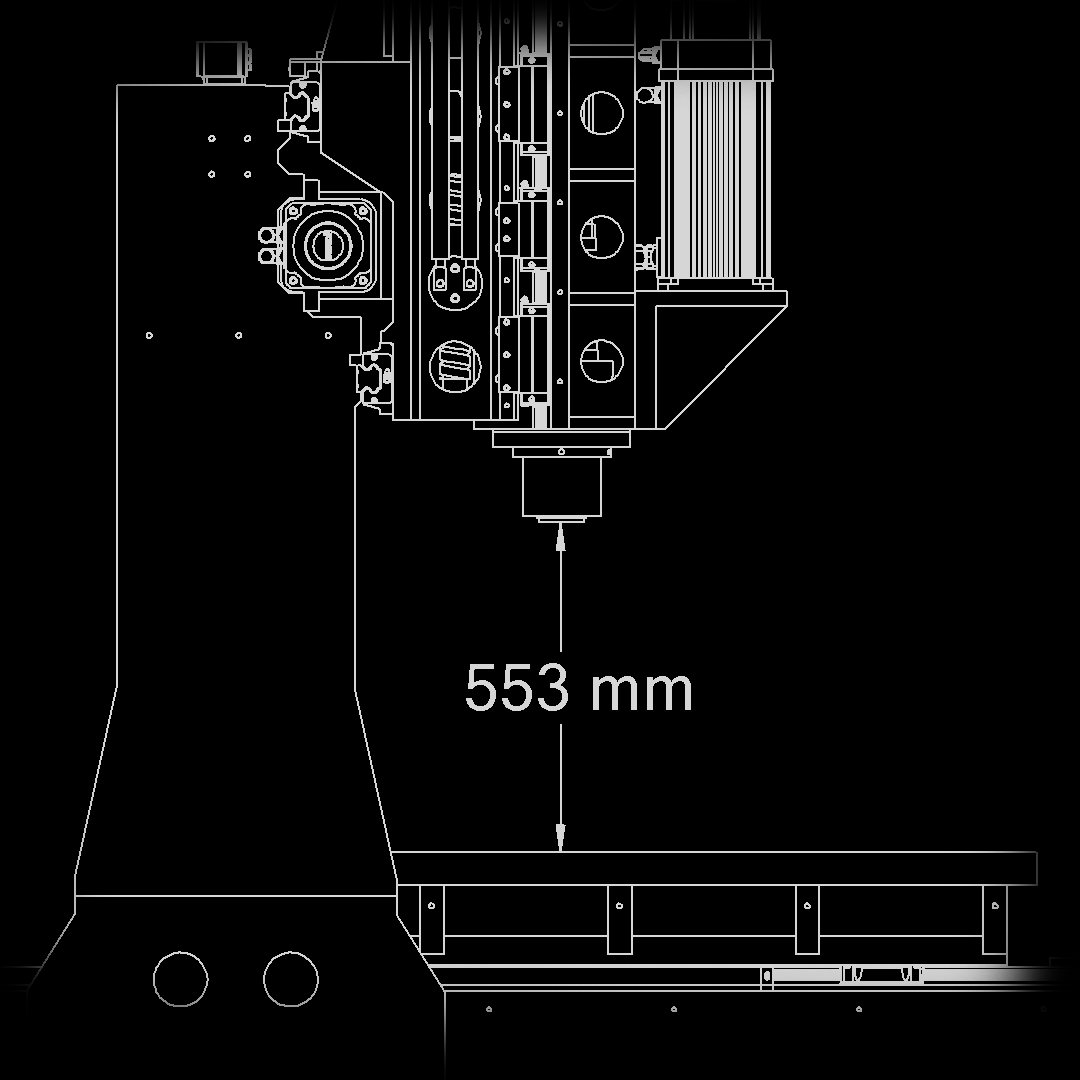

Distance Spindle nose to table surface mm 193 ~ 553
Table Table work area mm 1400 x 1000
Dimension of T-slot mm 6 x 18 x 174
Max. table load kg 2.400
Spindle Spindle taper   BT-40
Spindle motor-cont / 30 min kW 13.3
Spindle speed rpm 8000
Feed rate Rapid feed rate-X/Y/Z m/min 36 / 36 / 36
Axis feed motor-X/Y/Z kW 3.5 / 3.5 / 3.5
Cutting feedrate by table m/min 10
X/Y/Z ballscrew (dia. x pitch) mm 50 x P12
Machine Power requirement kVA 23
Min./Max. air pressure kg/cm2 5.5 / 6.5
CNC Controller   Siemens 808D Advanced
Floor space requirement mm 2140 x 4.200
Structure High quality gray cast iron
weight kg 10.000

Structure

Perfect machining performance and high surface quality thanks to superior stiffness! Large heat capacity of components guarantee thermal stability! Proven quality of the DMG MORI inline spindle – more than 3,000 units installed worldwide! Perfectly suited working area combined with compact footprint of only 6 m2 Fixed & rigid table with max. load of up to 600 kg assures high machining performance!
